Oxford Ranger Commode and Transporter Seat

  • Wheeled transporter and bath hoist with commode seat
  • Ideal for people that struggle to get in or out of baths
  • Suitable for use at either the side or the end of the bath
  • Available in a choice of manual or electric operation
Model:
Concrete/Wooden Flooring:
Column Assembly:
£3,215.99(Inc. 20% VAT)
(£2,679.99 Exc. VAT)

Oxford Ranger Commode and Transporter Seat

The Oxford Ranger Commode and Transporter Seat has been designed to facilitate safer and easier transfers in and out of the bath. As it is mounted on wheels, the user can be transported to the bath or poolside, before accessing the bath with the aid of the hoist mechanism.

What's Included?

The following items are included in your Oxford Ranger Commode and Transporter Seat kit:

  • 1 x Oxford Ranger Commode and Transporter Seat
    • 1 x Main Mast Assembly (15kg)
    • 1 x Universal Base Plate (5kg)
    • 1 x Floor Fixing Kit
    • 1 x Seat Support Arm (3kg)
    • 2 x Safety Arms (2kg)
    • 1 x Lap Strap (0.2kg)
    • 1 x Ranger Seat Assembly (6kg)
    • 1 x Transporter Chassis (9.4kg)
  • 1 x Wallet Containing Documents

How Does the Oxford Ranger Commode and Transporter Seat Work?

The Oxford Ranger Commode and Transporter Seat comprises a commode-style seat on a wheeled base to allow for easier transfers to the bath or to the side of the pool. Once ready for transferring, the chair can be unclipped from the base and attached to the hoist column.

With the Ranger seat securely connected to the hoist column, the user can sit comfortably for lowering into and out of the bath as required. Depending on the model type, the hoist can then be operated manually or electrically through a lever (please select your desired option from the drop-down above).

Who Can Use the Oxford Ranger Commode and Transporter Seat?

The Oxford Ranger Commode and Transporter Seat is suitable for individuals who struggle to get in and out of a bath but who would otherwise be able to enjoy a bath with transfer assistance. It's particularly suited if you still maintain a good deal of independence and can sit upright comfortably but would benefit from a little help when using the bath. The seat also includes side handles, helping you to feel safe and supported.

Please note that the Oxford Ranger Commode and Transporter Seat has a safe working load of 125kg or 20 stone.

How Can I Use the Ranger Commode and Transfer Seat at the Pool?

In addition to providing reliable transfer to and from the bath, the Ranger Commode and Transfer Seat is ideal for use as transport around a swimming pool. It is particularly useful when used alongside the Oxford Dipper Pool Hoist (sold separately), providing wheeled transfer to and from the Dipper Pool Hoist.

Oxford Ranger Commode and Transfer Seat for Poolside Assistance

How Can Carers Benefit from the Ranger Commode and Transporter Seat?

In addition to improving the bathing experience for the user, the Ranger Commode and Transporter Seat also helps to reduce the strain on a carer by eliminating the need for physical exertion when assisting a loved one or patient with bath transfers. This improves safety for the carer, ensuring they can continue to support their patient or loved one as required.

Will My Bath Be Suitable for the Oxford Transporter Seat?

The Ranger Commode and Transporter Seat is suitable for most bath-side locations. It can be secured either at the end of the bath or on the right- or left-hand side, ensuring it can be used is virtually any environment. If you find that your bath is too high for the hoist, the Oxford Mermaid Column Extension can be purchased to add a height increase of up to 150mm to the hoist.

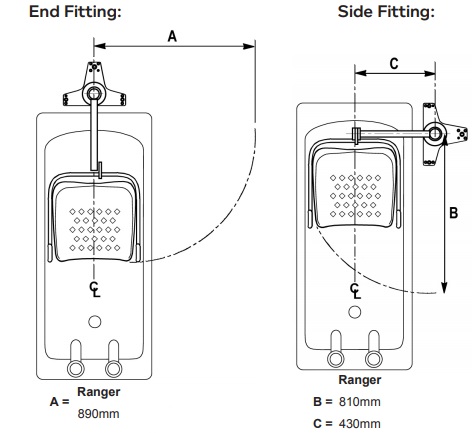

Please note that there must be enough space for the hoist to successfully turn. If you are fitting the hoist to the end of the bath, a width of 890mm will be required. If you fit your hoist to the side of the bath, a width of 810mm and a length of 430mm will be required. Please see the diagrams below for more information.

Oxford Ranger Commode and Transfer Seat Fitting Requirements

Will My Floor Be Suitable for the Oxford Transporter Seat?

When purchasing your Oxford Transporter Seat, you can choose between floor fixings for a wooden floor or a concrete floor. These have been designed to ensure that you can use the Oxford Transporter Seat on either a concrete or wooden floor as safely and as securely as possible. Your required option can be selected from the drop-down menu at the top of the page.

How Safe Is the Oxford Ranger Commode and Transporter Seat?

The Oxford Ranger system has been designed to facilitate safer transfers to and from the bath. As such, it is provided with floor fixings as standard to ensure you can secure the column in place beside your bath as required. The seat also includes a lap strap for patient safety, and features side arms for holding onto for additional support.

Should I Choose Manual or Electric Operation?

The Oxford Ranger Commode and Transporter Seat can be purchased with either a manual operation or an electric operation, and whether you choose to go for the manual or the electric option is entirely down to your own preference. The manual hoist does not require any electricity and therefore may be financially more beneficial, and the electric option allows for easier operation and manoeuvring of the hoist. Your required option can be selected from the drop-down menu at the top of the page.

Can More Than One Person Use the Ranger Commode and Transporter Seat?

The Ranger Commode and Transporter Seat is suitable for use by multiple people. This makes it ideal for use in care homes or in households where more than one person requires assistance with transferring to and from the bath. Cleaning the Ranger Commode and Transporter Seat thoroughly between use ensures good hygiene and protects against the spread of germs between users.

How Do I Operate the Oxford Ranger Commode and Transporter Seat?

The following instructions are provided for operating your manual or electric Oxford Ranger Commode and Transporter Seat:

  • Manual Oxford Ranger Commode and Transporter Seat: Raise and lower the seat by turning the winding handle at the top of the column, turning anticlockwise to lift the seat and clockwise to lower it. There are positive stops in the mechanism to ensure the seat does not rotate too far.
  • Electric Oxford Ranger Commode and Transporter Seat: A hand control is plugged into the top of the column, and pressing the buttons on this remote will raise or lower the hoist accordingly. As with the manual version, there are positive stops to prevent the seat from turning further than necessary.

For more information about operating your manual or electric Oxford Ranger Commode and Transporter Seat, please see the user instructions in the PDF below.

How Do I Install the Oxford Ranger Commode and Transporter Seat?

The Oxford Ranger Commode and Transporter Seat must be assembled in the correct order when installing the hoist beside the bath. Please see the User Instructions Manual in the PDF below for detailed instructions concerning the assembly and installation of your Oxford Ranger Commode and Transporter Seat.

Oxford Ranger Commode and Transporter Seat User Instructions
Oxford Ranger Seat User Instructions

Please note that, before commencing installation, it is recommended that an architect or structural engineer is consulted to verify the structural integrity and suitability of the floor.

How Do I Fit the Lap Strap for the Ranger Seat?

A visual guide to fitting and cleaning the lap strap to your Ranger seat can be found in the PDF below. Please ensure that the strap is securely fitted and not twisted before use.

Oxford Ranger Commode and Transporter Seat Lap Strap Instructions
Oxford Ranger Seat User Instructions

How Do I Charge My Electric Bath Lift?

If you've chosen the electric Ranger Commode and Transporter Seat, then the batteries inside the power pack will need to be charged. A charger is provided with the electric hoist, and it is recommended that you charge the batteries when the hoist is not in use. If your existing charger is lost or broken, a spare Oxford Mermaid Charger can be purchased to ensure your bath hoist can remain in reliable working order.

How Do I Clean the Ranger Commode and Transporter Seat?

Regularly and thoroughly cleaning your Ranger Commode and Transporter Seat helps to keep it clean and in good operation. It is recommended that you wipe down all surfaces with a damp cloth using warm water and disinfectant. A general purpose detergent or detergent wipe should be used. For a thorough guide to the DOs and DON'Ts of cleaning your Ranger Commode and Transporter Seat, please see page 17 in the PDF below.

Oxford Ranger Commode and Transporter Seat Cleaning Instructions
Oxford Ranger Seat User Instructions

Can I Upgrade My Manual Host to an Electric Hoist?

Yes! You can purchase the Oxford Ranger Commode and Transporter Seat Electric Retro-Fit Kit, and this includes the components necessary for upgrading your manual Ranger hoist to an electric Ranger hoist. This is particularly suited to environments where the Oxford Ranger Commode and Transfer Seat is used frequently, and eliminates the need to buy a completely new hoist when you are ready to upgrade.

Can I Access the Parts Manual?

If you wish to see a full inventory of the parts that are included in your Ranger Commode and Transporter Seat Kit, please see the PDF below.

Oxford Ranger Commode and Transporter Seat Parts Manual
Oxford Ranger Seat User Instructions

Technical Specifications

  • Ranger Chair Weight: 13.3kg
  • Safe Working Load: 125kg
  • Ranger Transporter Maximum Dimensions (WxDxH): 610 x 560 x 610mm
  • Ranger Seat Maximum Dimensions (WxHxD): 360 x 740 x 410mm

For a comprehensive list of technical specifications for the Oxford Ranger Commode and Transporter Seat, please see the user instructions in the first PDF on this page. The technical specifications can be found on page 24 of the user manual.
